PyExtal example for CBED refinement¶
[ ]:
import numpy as np
import matplotlib.pyplot as plt
from skimage.filters import farid
from pyextal.dinfo import CBEDDiffractionInfo
from pyextal.roi import CBEDROI
from pyextal.optimize import CoarseOptimize, FineOptimize
from pyextal.gof import Chi2_multibackground
plt.rcParams['image.cmap'] = 'inferno'
pyextal package imported. Version: 0.0.1
load data¶
load the input data
load the mtf for the detector

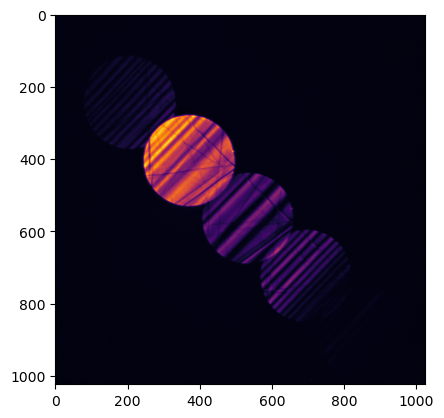

display the data
[ ]:
data = np.fromfile("si04.img", dtype='<f4', offset=8).reshape(1024, 1024).byteswap()
mtf = np.load('YAG 120 CCD MTF.npy')
plt.imshow(data)
<matplotlib.image.AxesImage at 0x79c80ed50c50>
set detector parameters¶
set the detector parameters, check Electron Detection Characteristics of a Slow-Scan CCD Camera, Imaging Plates and Film, and Electron Image Restoration for what the parameters mean
varB
delta
A
g
m
background for Lucy-Richardson deconvolution (currently not used)
[ ]:
[4]:
dtpar = [3.15, 4e-5, 1.2, 2.2, 0.111]
background = 38.0681229
initialize diffraction info class¶
stores dp
initial guess of thickness
additional tilt x and y
geometry scaling
.dat file path
detector parameters
mtf shape
background for Lucy-Richardson deconvolution
[ ]:
dinfo = CBEDDiffractionInfo(data, 3431.99, 0, 0, 226.7, 'Si_systematic.dat', dtpar, mtf, background,)
region of interest parameters:¶
defines the region of interest for refinement
rotation: relative to the xaxis set in .dat
gInclude: list of g-vectors to include in the refinement
dpCenter: of diffraction pattern for simulation as reference point
dpSize: size of the diffraction pattern for simulation
[6]:
rotation = 44.742
dpCenter = [250, 450]
dpSize = [500,1200]
gx: the horizontal axis for simulation
[7]:
roi = CBEDROI(dinfo=dinfo, rotation=rotation, gx=np.array([1,-1,-1]), gInclude=[(-1,1,1),(0,0,0),(1,-1,-1),(2,-2,-2)], dpCenter=dpCenter, dpSize=dpSize)
include beam initialized
group symmetry initialized

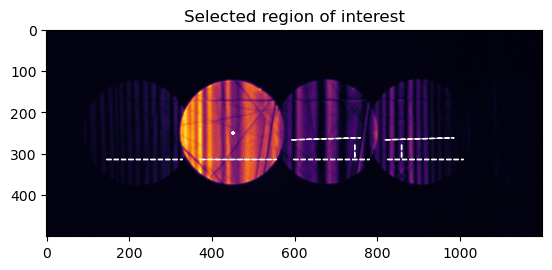

select the region of interest for refinement
- regions: define 3 points relative to dpCenter to defeine a parallelogram, multiple regions can be defined, [[region1_top_left, region1_top_right, region1_bottom_left, pixels],[region2_top_left, region2_top_right, region2_bottom_left], …]region_top_left = [row, column]pixels = [pixels_row, pixels_column]
mask: whether to include the region for each reflection selected in nthgx [[region1_beam1, region1_beam2, …], [region2_beam1, region2_beam2, …], …], 1 include, 0 exclude
[8]:

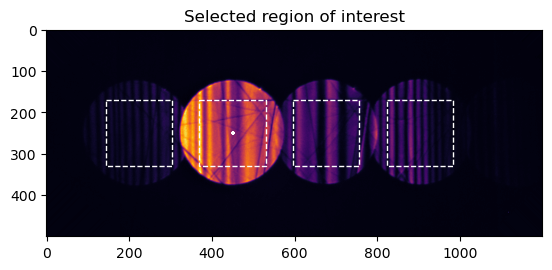

roi.selectROI(np.array([[[-80,-80], [-80, 80], [80,-80], [160,160]]]))
roi.displayROI()
initialize coarse refine¶
only support rectangular ROI, and only one region
[9]:
coarse = CoarseOptimize(dinfo=dinfo, roi=roi, searchRadius=0.7, nx=60)
[10]:
coarse.optimizeOrientationThickness()
Optimization terminated successfully;
The returned value satisfies the termination criteria
(using xtol = 0.001 )
thickness: 3433.1703399999997, gl: 226.7, tiltY: -0.018218052064882362, tiltX: 0.0060726840216274725
[11]:

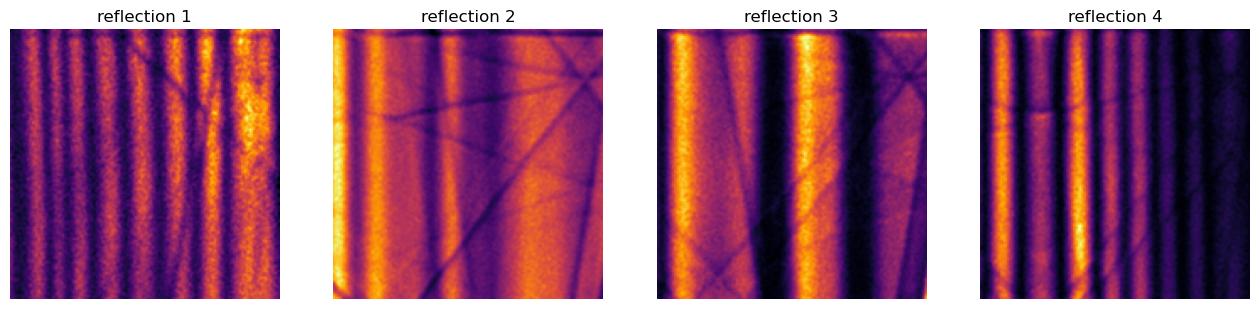

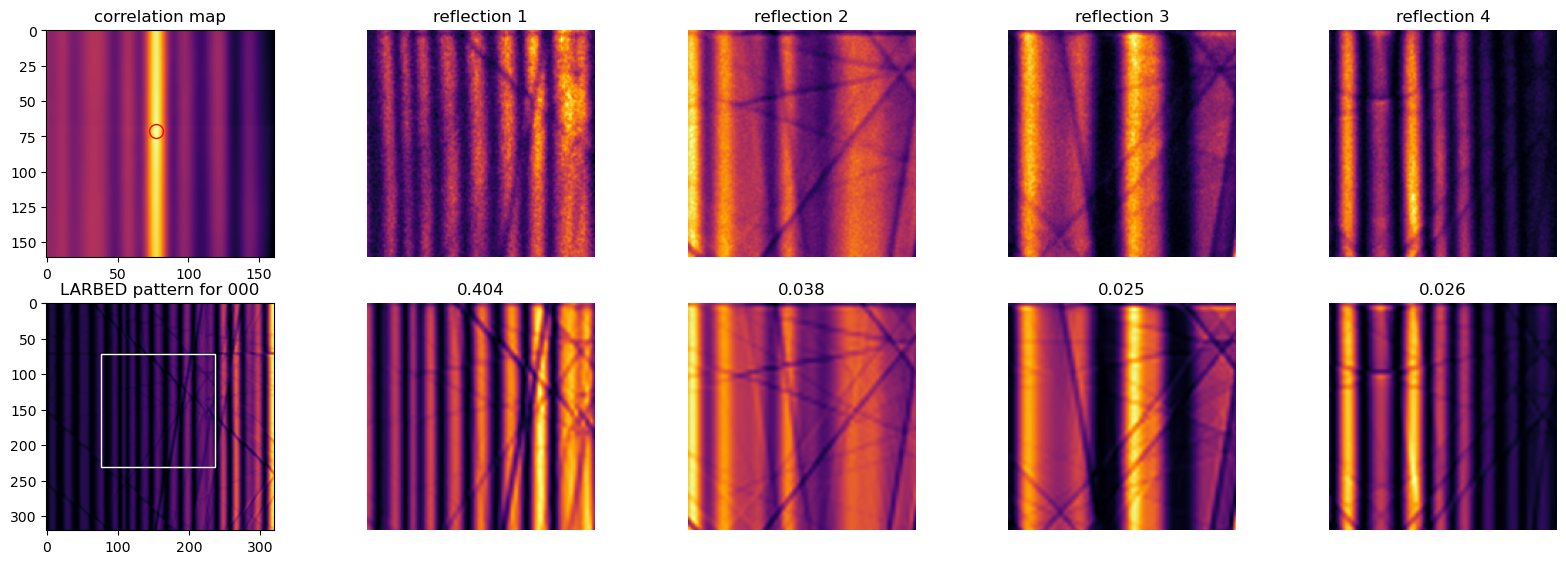

coarse.displayCoarseSearch()
[ ]:
roi.selectROI(np.array([
[[61.48970, -80.59588], [61.48970, 104.16463], [61.48970, -80.59588], [101, 1]],
[[16.15227, -85.27648], [11.25240, 83.03997], [16.15227, -85.27648], [101, 1]],
[[59.41647, -44.46745], [25.42195, -44.45989], [59.41647, -44.46745], [21, 1]],
[[59.41647, 68.88256], [25.42195, 68.89011], [59.41647, 68.88256], [21, 1]],]),
mask=np.array([[1,1,1,1],[0,0,1,1],[0,0,0,1],[0,0,1,0], ]))
roi.displayROI()
initialize fine refine for structure factor¶
reflections: list of reflections to refine
errorFunc: error function to use for refinement, define in gof.py, if developing new error function, inherit from BaseGOF ABC.
perturbROI: allow shift or rotation or scale of the region of interest
shift disk: allow region of interest to shift different for each beam selected by nthgx
[14]:
fine = FineOptimize(dinfo=dinfo,
roi=roi,
reflections=[(1,-1,-1),(2,-2,-2)],
sfMask=np.array([[True, True], [True, False]]),
errorFunc=Chi2_multibackground(dinfo),
perturbROI=True,
shiftDisk=False,
symUpdate=False,
)
# fine.getx0()
[15]:
extal = np.array([[0.0471822, 0, 0.831778E-03, 180],
[0.963641E-03, 180, 0, 0],])
fine.getx0(extal[:,::2])
fine.getRange(np.array([[[0.045, 0.0005], [0.0009,0.00]], [[0.05, 0.001],[0.0011, 0.00]]]))
setting the initial value and normalization range to:
beam: (1, -1, -1)
lower value upper
U : 4.5000000e-02 4.7182200e-02 5.0000000e-02
UA: 5.0000000e-04 8.3177800e-04 1.0000000e-03
------------------------------
beam: (2, -2, -2)
lower value upper
U : 9.0000000e-04 9.6364100e-04 1.1000000e-03
UA: 0.0000000e+00 0.0000000e+00 0.0000000e+00
------------------------------
[ ]:

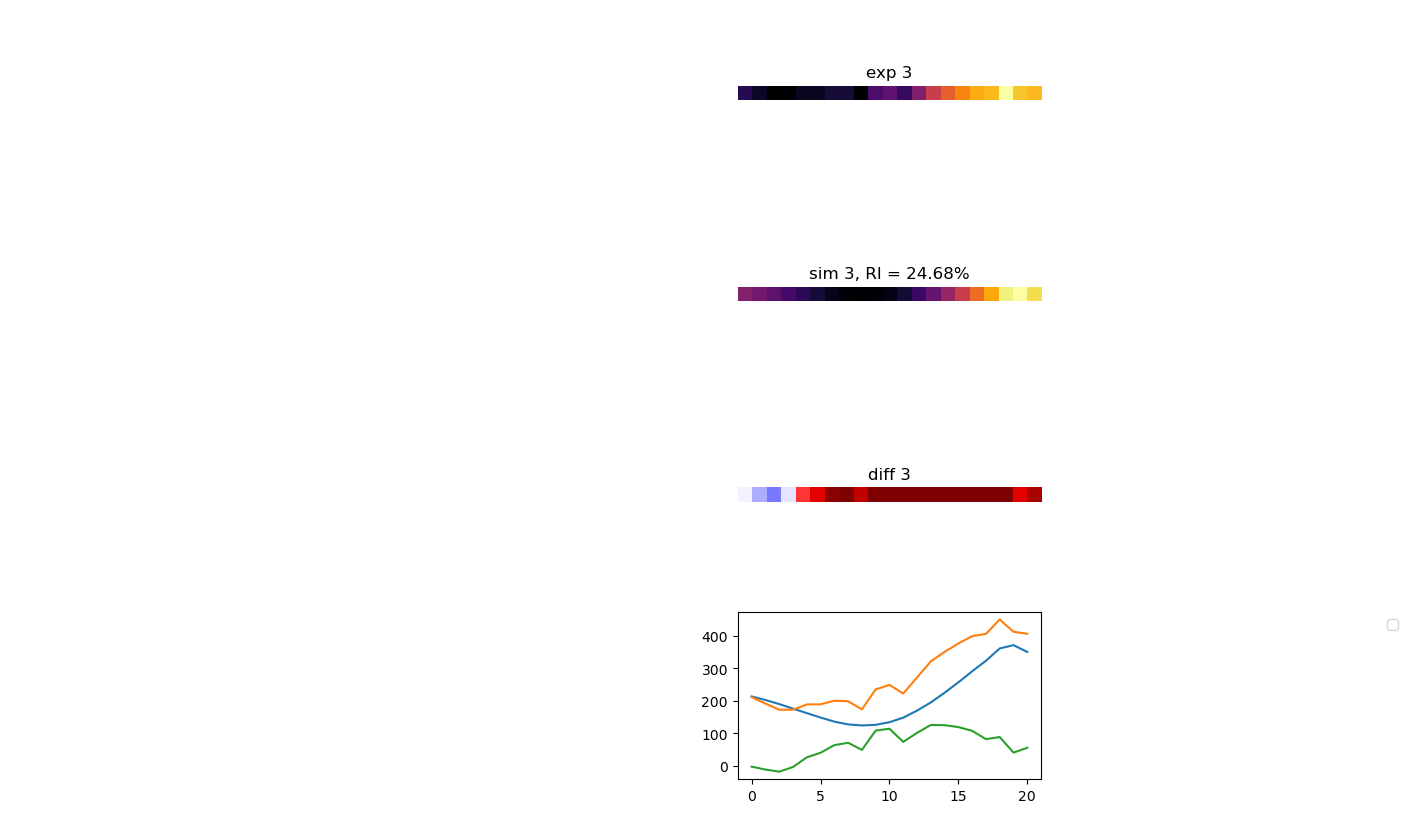

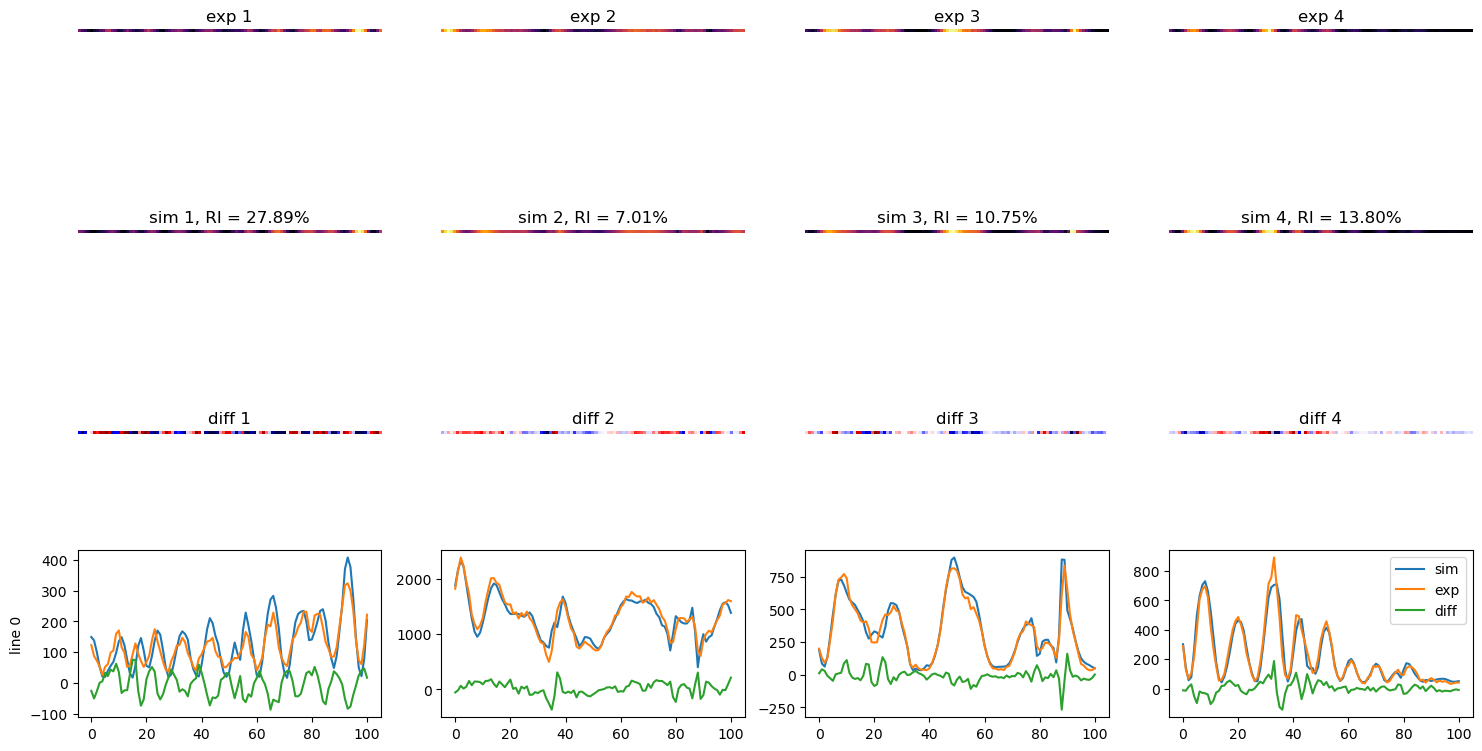

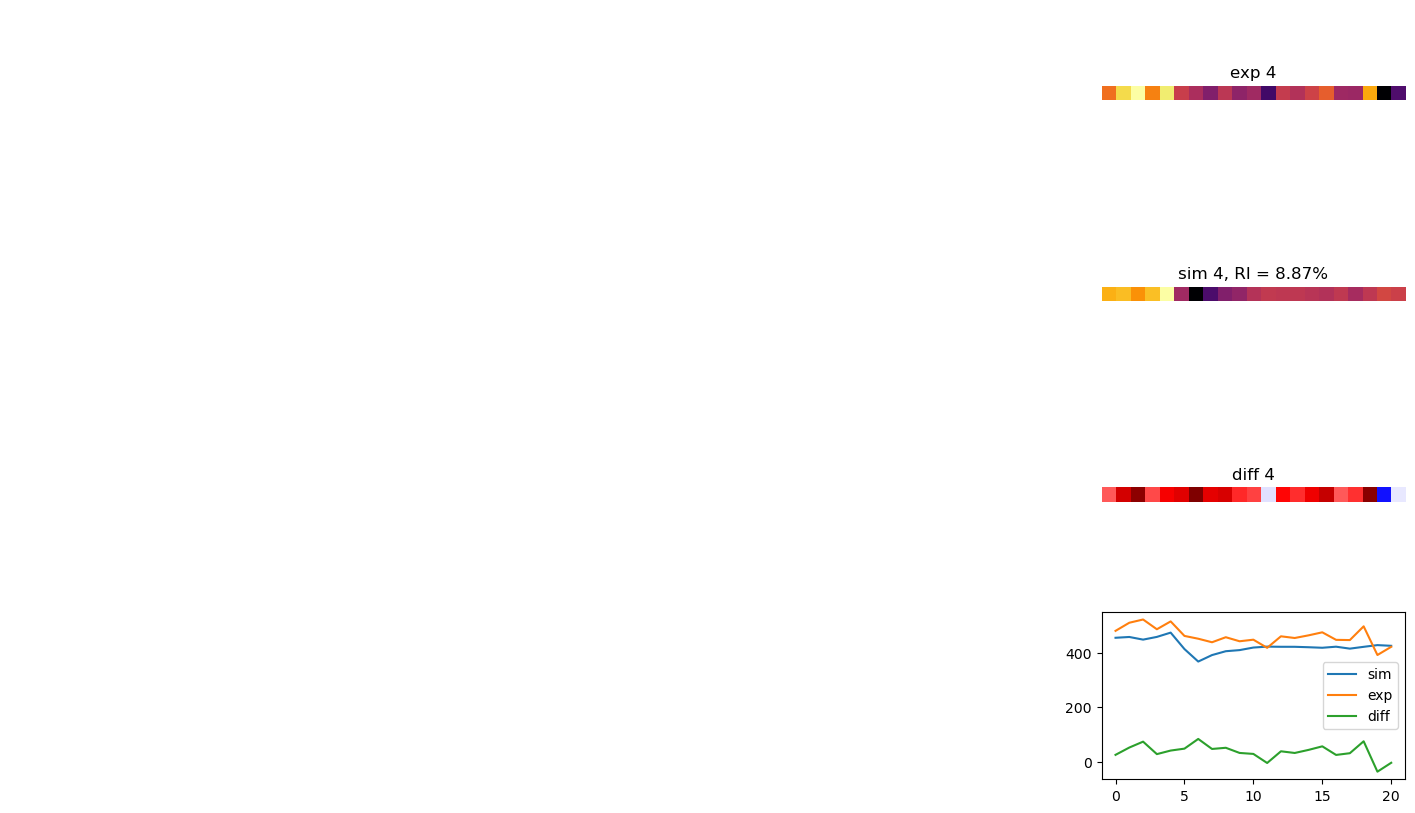

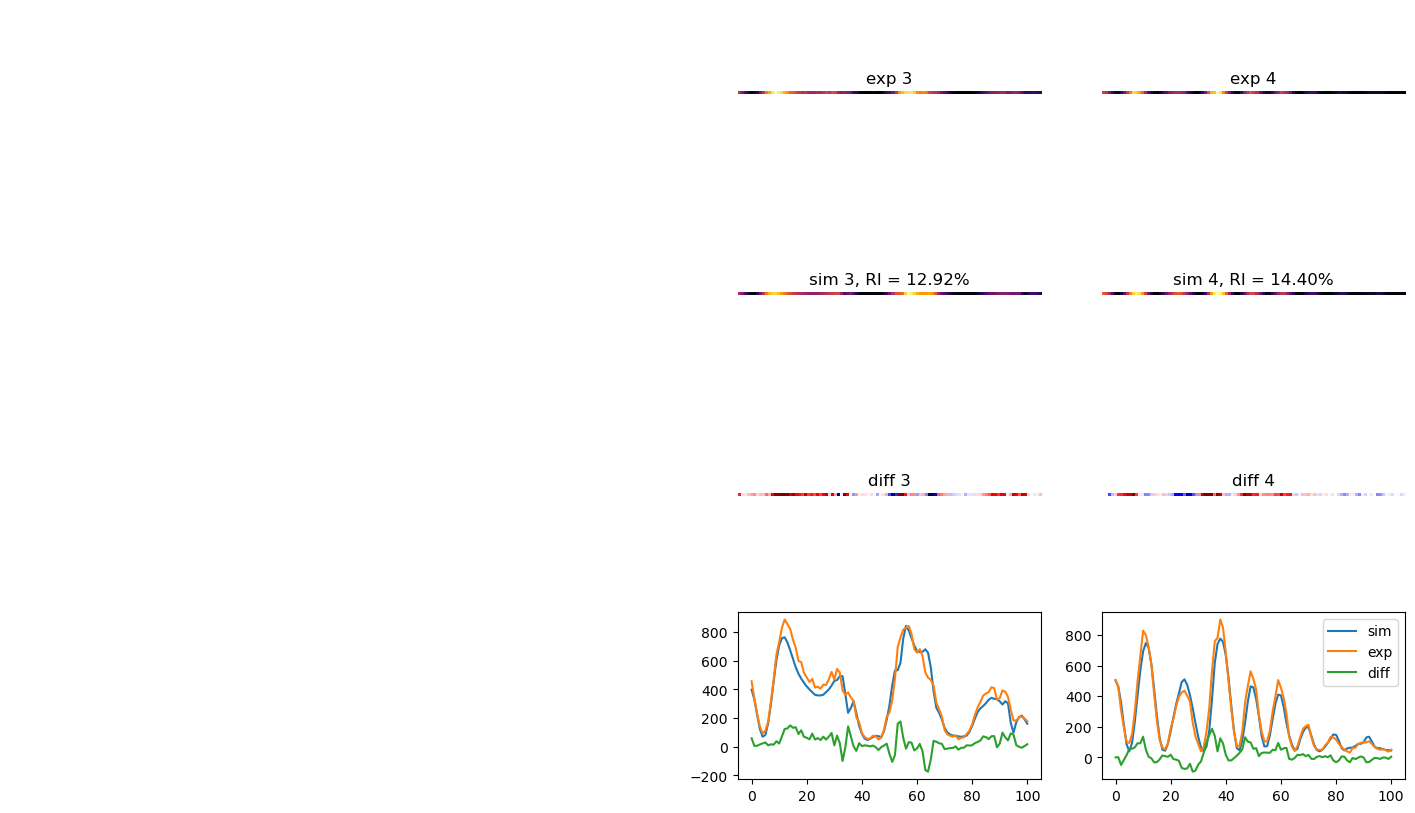

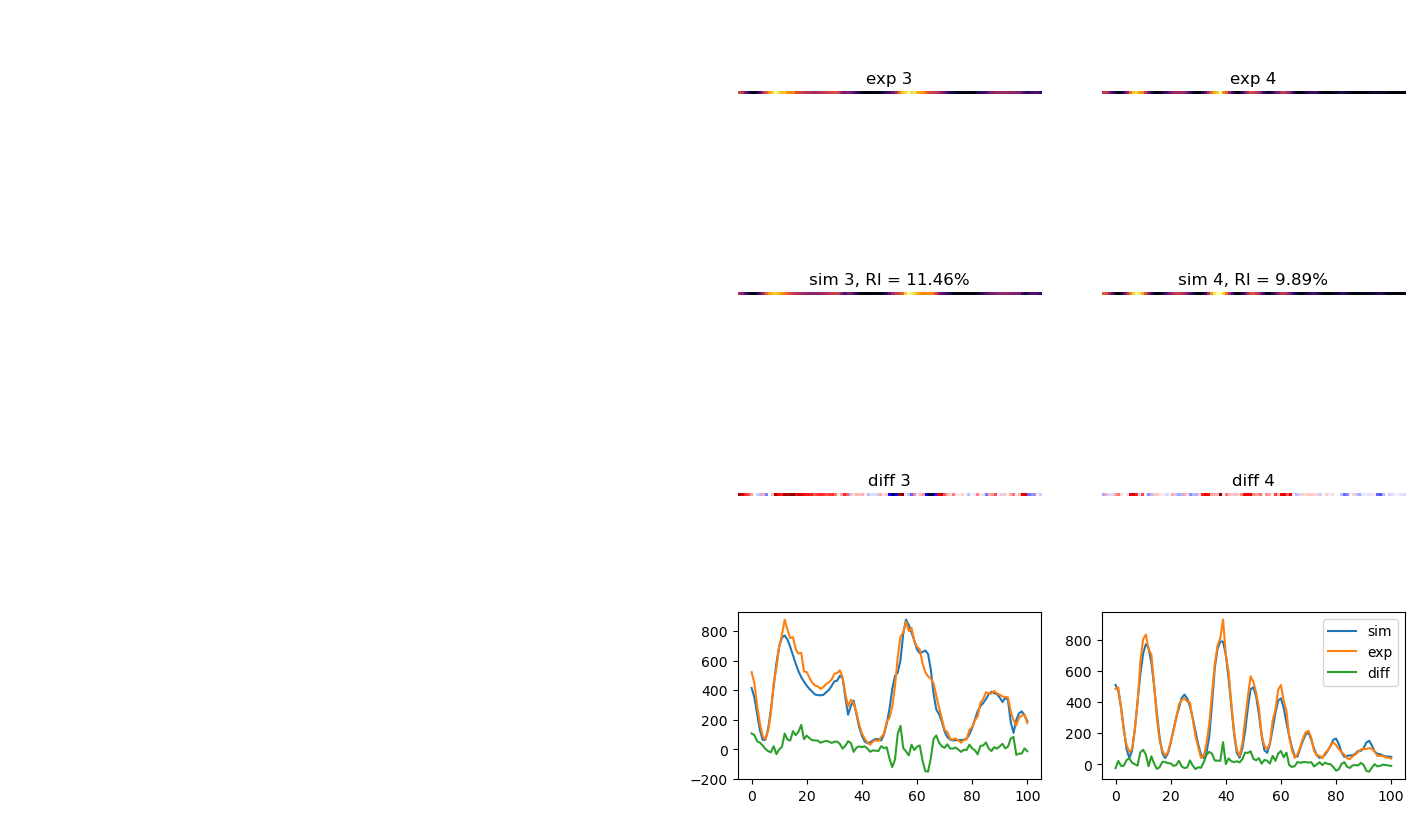

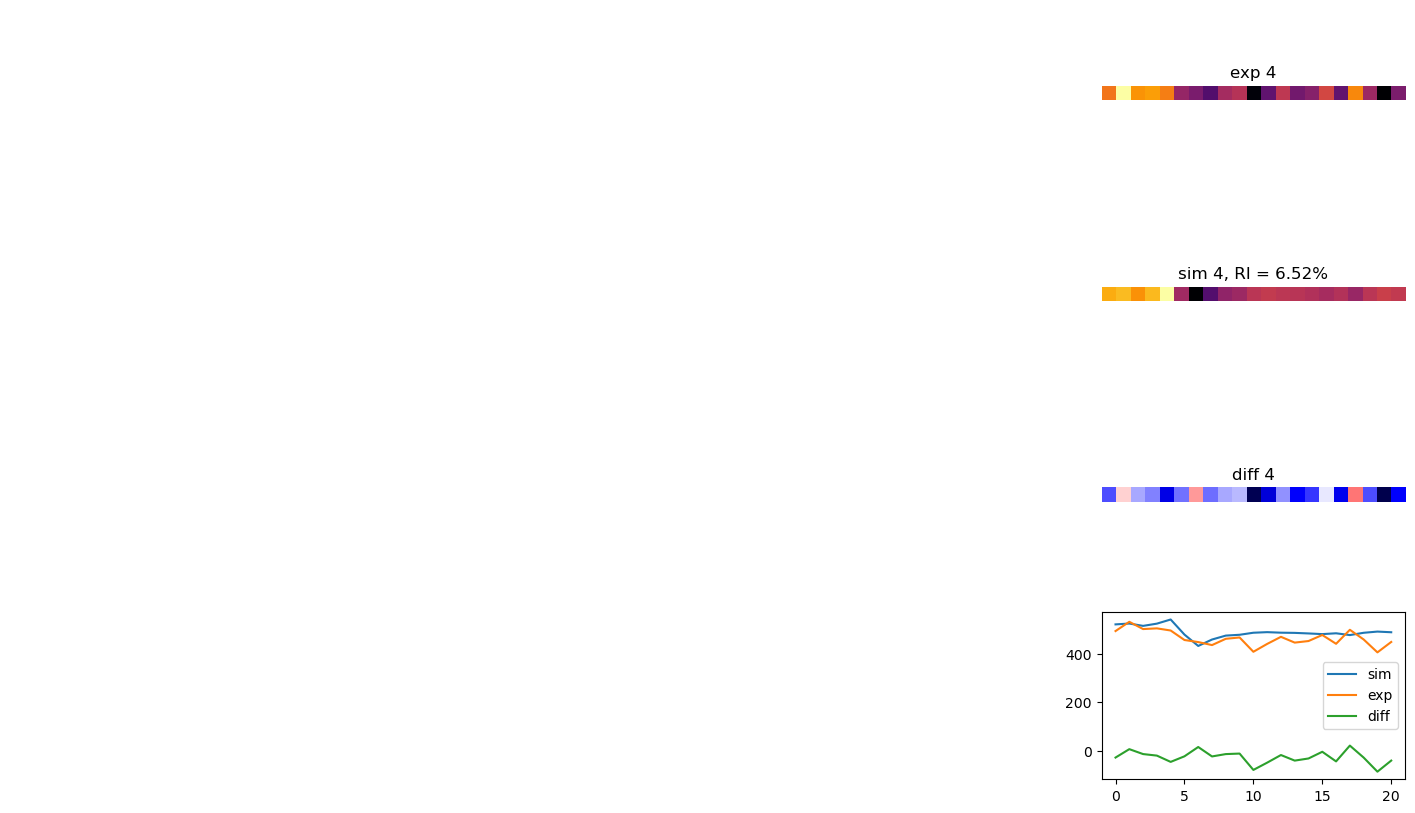

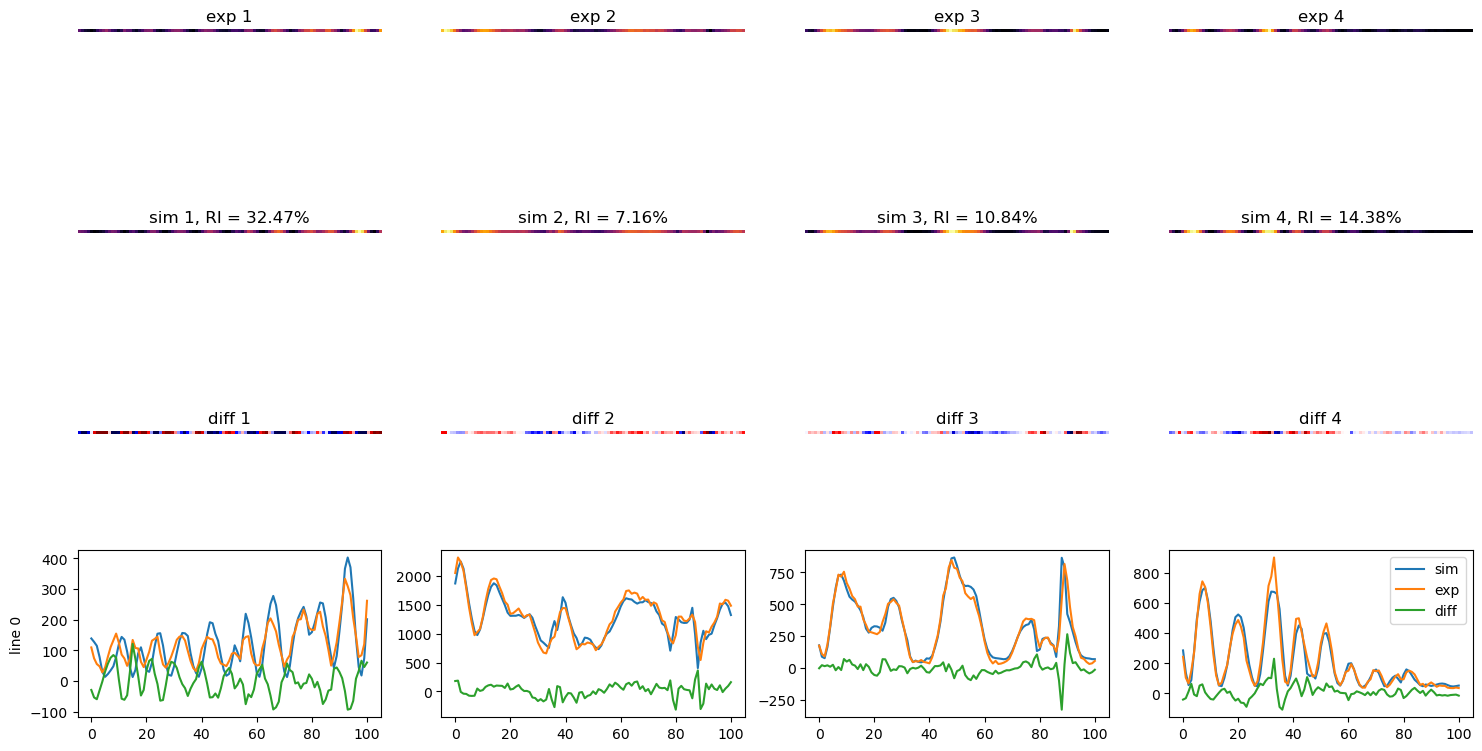

fine.display([0,])
(1, -1, -1): U 0.0471822 UA 0.0008318
(2, -2, -2): U 0.0009636 UA 0.0000000
Chi Square background for each disk: 3.51688
No artists with labels found to put in legend. Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
